Welcome to

12

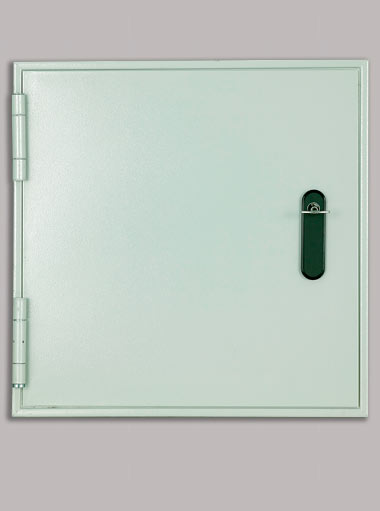

inox

EI260 C5 / EI290 C5
UL 90-120-180
Elegance, seriousness and high quality

For those seeking a high quality solution and ultramodern design,the Firestop INOX door offers an excellent finish which fits in perfectly in public and private spaces where the demand for quality is high.

Manufactured in stainless steel,it combines the strength and safety of other solutions with a more sophisticated and elegant appearance.

Wide range of standard sizes in two different heights for a greater "economization" in the projects, which results in a great quality at a good price.

Special measures to adapt it to any need.

Thermal Insulation Coefficient 1,2 (W / m2k)

Superior torsional stiffness of the blade compared to traditional assembly.

Stainless sheet with great resistance to corrosion and durability.

Frame abrazamuro that allows the installation type "tunnel".

Excellent standard equipment.

Wide variety of extra accessories available.

Tested for more than 200,000 opening and closing cycles.

Approved as a whole.

Fire resistance of 60 and 90 minutes according to the regulation EN 1634-1: 2000

Certificate of Durability C5 according to EN 14600: 2005

ISO 9001: 2008 Certificate

Galvanized steel sheet between 0.7 and 0.9 mm. of thickness, assembled by roll forming machine by means of double folding and sewing of the LID-TRAY assembly.

Rock wool insulation density 145/180 Kg / m3.

Galvanized steel stiffeners.

Steel anti-lever bolt, hexagonal 14x36 mm. galvanized

Sheet thickness 51 mm.

Approximate weight of 25 Kg / m2.

Stainless steel with reduced thermal conductivity, 1.5 mm thick.

Jambs and lintels of the special profile model ASTURMADI in the form of an abrazamuro.

Fixing claws cold rolled steel, 230 x 1.5 mm., Special for different types of partition.

Separators of sheet steel 50 x 2.5 mm.

Steel hinges of 3 mm thickness fixed to the blade with galvanized M6x16 screws, and to the frame by welding, adjustable 3D.

Intumescent board of graphite 15 x 2 mm. Dilates 25 times its size T> 150ºC.

Reversible double-walled CF lock, embedded in the leaf, protected by two plates of stucal MO.

Brass bulbs, 40 x 40 with 3 keys.

Handle Model CF anti-hook. With steel soul lined by fusion. Metal shields lined with nylon and screws.
